Guangdong Hongming Intelligent Joint Stock Co.,Ltd

位置:首頁 > Products > Rigid box machines

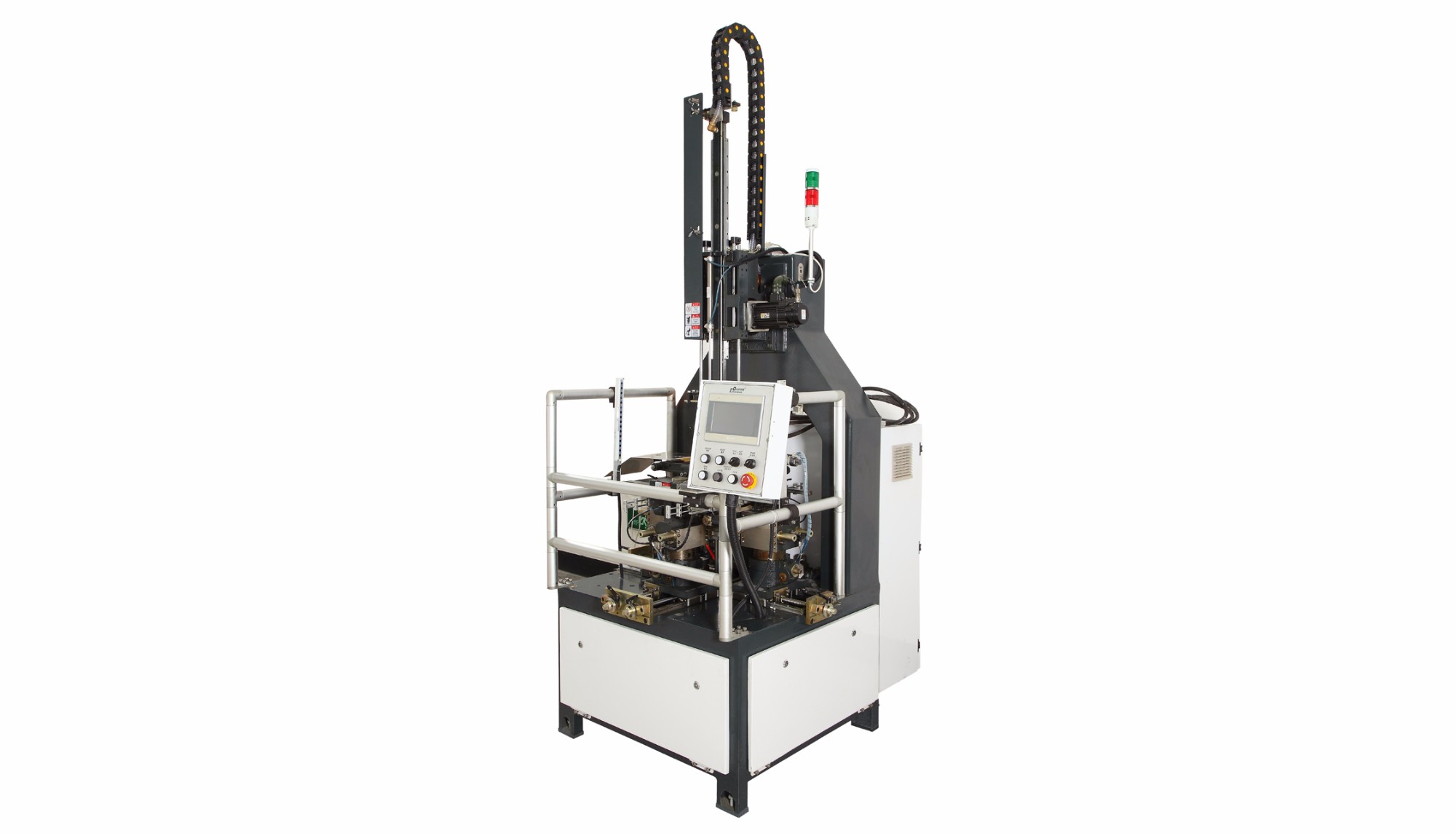

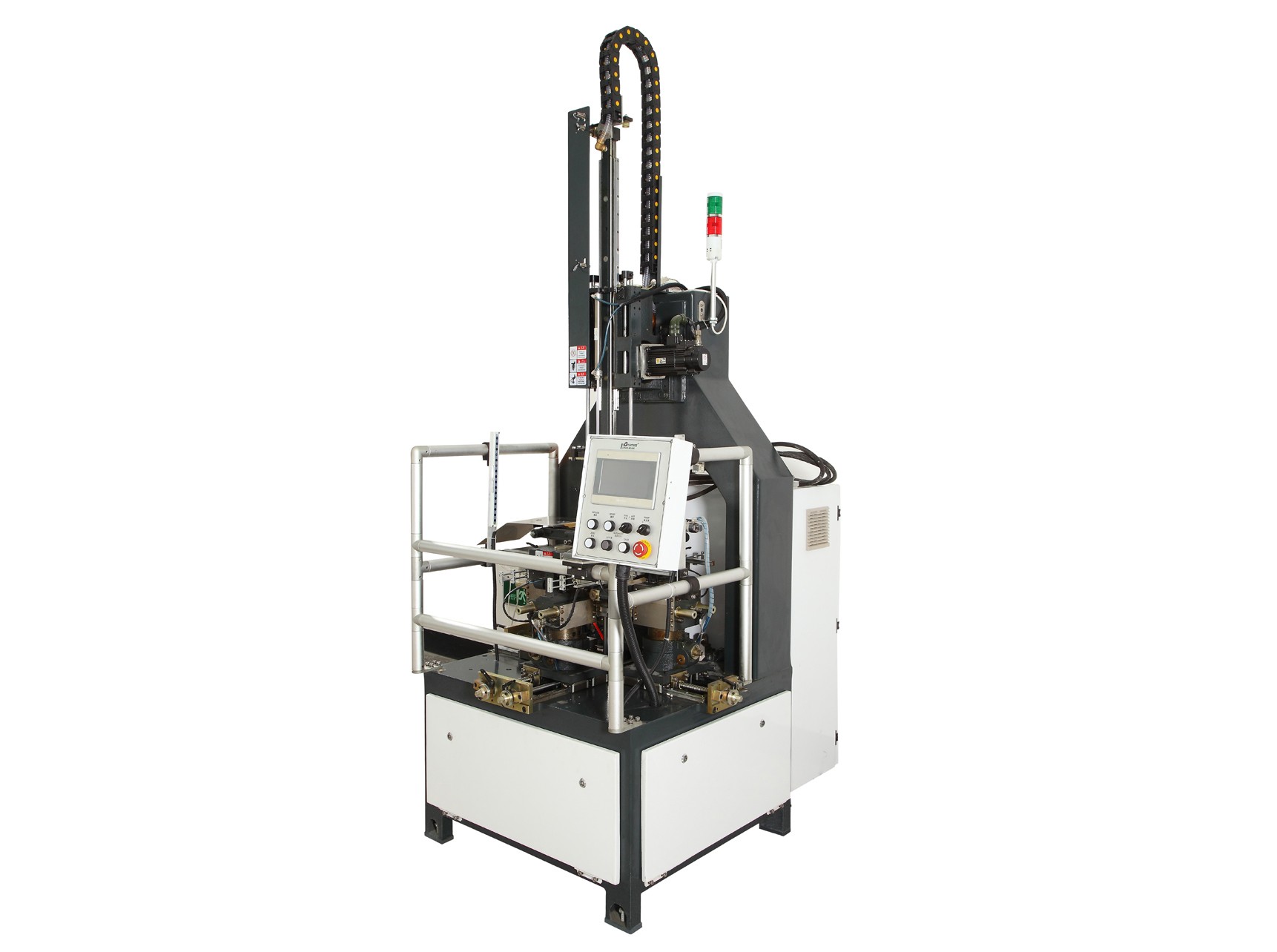

HM-ZD430/ZD6040 Automatic Box Forming Machine
HM-ZD430/ZD6040 Automatic Box Forming Machine HM-ZD430/ZD6040 Automatic Box Forming Machine HM-ZD430/ZD6040 Automatic Box Forming Machine
  • Commodity name:

    HM-ZD430/ZD6040 Automatic Box Forming Machine
  • Shelf time:

    2021-06-05 09:42:48
  • Browse times:

    1806次
  • Hongming machinery mainly produce Automatic rigid box machine, rigid box maker, rigid box line, glueing machine, box wrapping machine, box maker, ect. These machines are widely used to making rigid box, fancy box, custom box, cell phone boxes, chocolate boxes, etc.
  • Details of the product

      HM-ZD430/ZD6040 Automatic box forming machine is our latest box forming machine. It applies to make high quality rigid box into mass production. Like jewelry box, mobile box, gift box, cosmetic box, watch box, slanting box, slip case (option device) etc. The min. finished size is 55x45x10mm, maximum finished size is 400x300x80mm.

      This machine adopts servo and cam drive, wrapping, folding molding done automatically, the operation is more stable and smooth. Folding ear part adopt cylinder device which achieve longer size range. Due to the extensive use of servo, the running speed increase a lot with more flexible control. Hongming patented clamping mechanism, derived from a series of mature box mode, to meet customer further demand. The machine also uses a light sensor and rails to protect the operator.

      The machine requires only one operator can complete the normal operation, a capacity 800-1200pcs box per hour.



Features:

  1. Suitable to kinds of rigid box production

  2. Computer control parameter settings

  3. Malfunction Alarm

  4. Suit to slanting box and slip case production (optional)

  5. Protect system adopts Panasonic light sensor

  6. Variety modes of production

  7. Servo control system



Technical Parameters

Model

HM-ZD430

HM-ZD6040

Box Size (Max.)

400x300x80mm

600×400×130mm

Box Size (Min.)

55x45x10mm

100×50×12mm

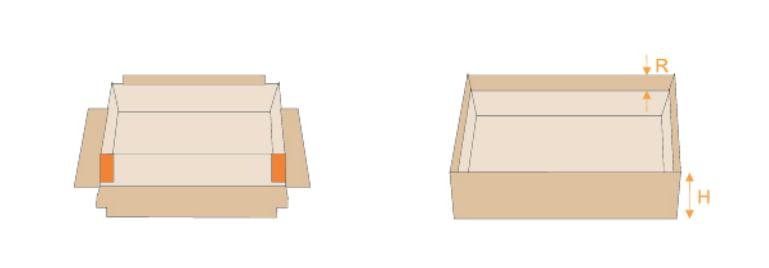

Paper Folding In Size (R)

8-80mm

8-100mm

Paper Corner Edge Size

10-90mm

10-80mm

Working Speed

≤25pcs/min

25pcs/min

Power

3.5kW

5kw

Net Weight

1000kg

1000kg

Machine Dimension

1500x1200x3000mm

1500x1200x3100mm

 HM-ZD430 ZD6040成型機成型過程.jpg
