Guangdong Hongming Intelligent Joint Stock Co.,Ltd

位置:首頁 > Products > Rigid box machines

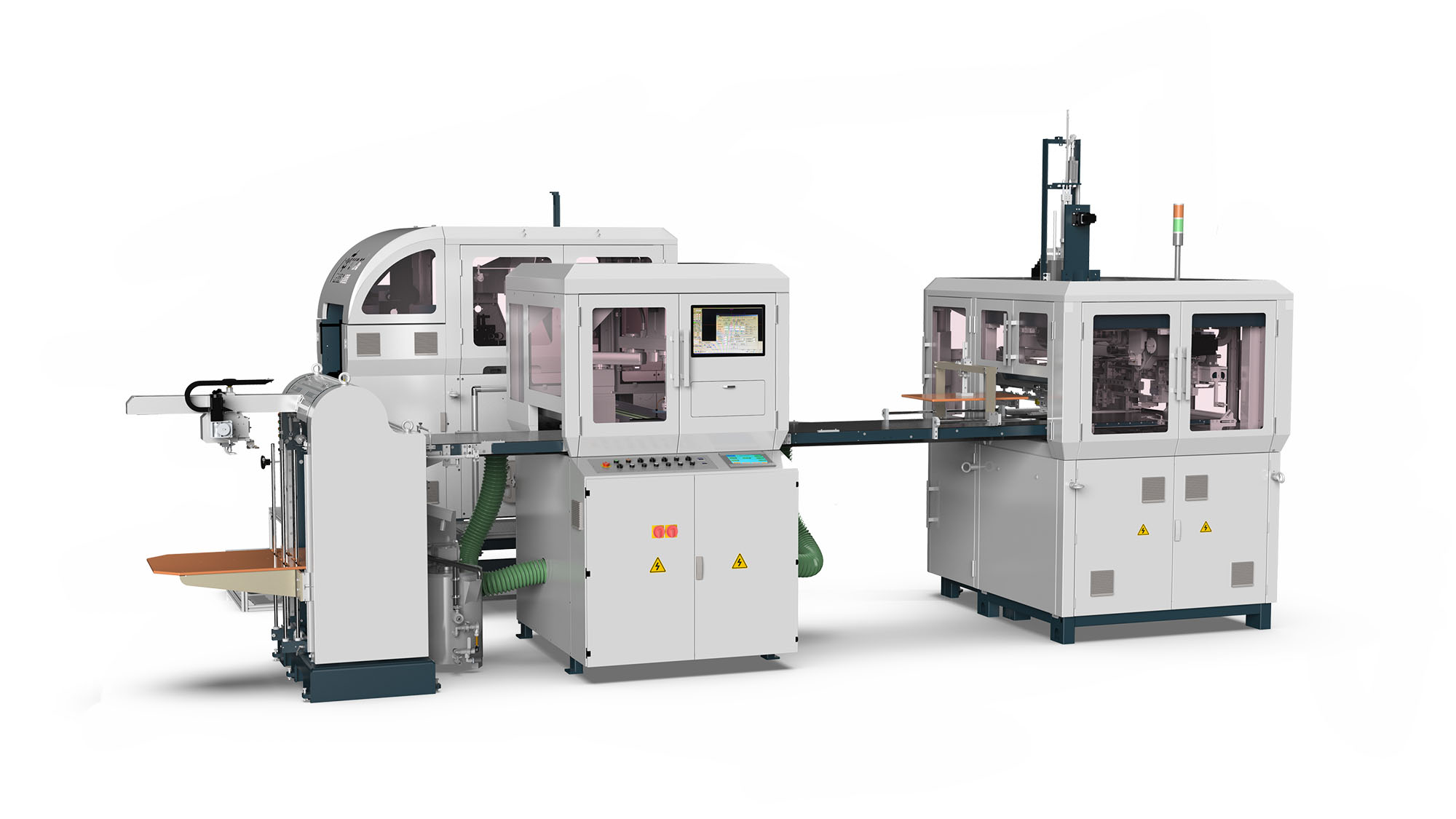

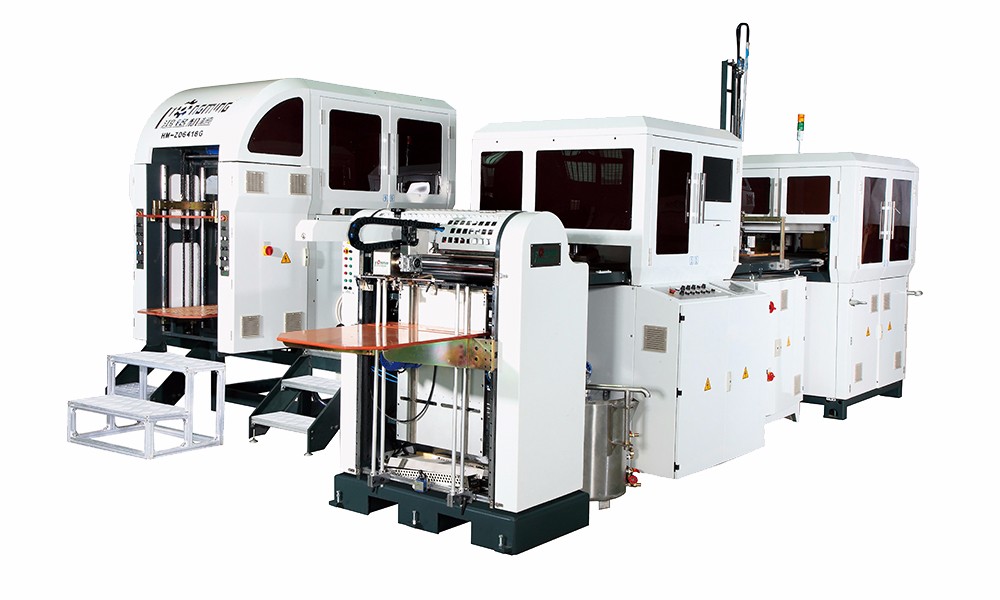

HM-ZD6418K Automatic Rigid Box Machine
HM-ZD6418K Automatic Rigid Box Machine HM-ZD6418K Automatic Rigid Box Machine HM-ZD6418K Automatic Rigid Box Machine HM-ZD6418K Automatic Rigid Box Machine HM-ZD6418K Automatic Rigid Box Machine
  • Commodity name:

    HM-ZD6418K Automatic Rigid Box Machine
  • Shelf time:

    2021-06-02 14:12:12
  • Browse times:

    2459次
  • Automatic rigid box machine, rigid box line, Set up box machine, cardboard box machine, mobile phone box machine,paper box machine, cosmetic box machine
  • Details of the product

HM-ZD6418K automatic intelligent world cover box machine product introduction.

       HM-ZD6418K Automatic Rigid Box Machine is one of the most advanced fully auto box machines by our company.It is suitable to make various types of rigid boxes for mass produc-tion. Such as mobile phone boxes, gift boxes, cosmetic boxes,watch boxes, slating boxes, slip case(option), clam shell box(option) etc. Size range is bigger than ZD350A, more suitable for current packaging market. Machine s appear-ance is new design which is more safe and beautiful.

       HM-ZD6418K adopts PLC and man-machine control,camera tracing system, and can automatically feed cover paper , feed greybeard, tape four corners, spot greybeard, lift box, wrap box, fold corner edges and form box.

       The feeder, the gluer and the conveyor are driven by well known servos which have continuously variable transmission and enjoys high accuracy, easy adjusting. and less time consumption. The spot unit adopts Germany camera with 5 million pixel and spotting accuracy to ±0.05mm. The forming unit employs Germany REXROTH linear slider and virtual cam driving system, guaranteeing the stable quality and fluent movement and enlarge the folding-in depth and corner edges.

       1-2 operators can run the machine under production 1200-1800 pcs/ hour .


HM-ZD6418K automatic intelligent box machine unit features and standard equipment.

1. Suit to all kinds of rigid boxes in mass production

2. Computer control for auto mould changing(optional)

3. Auto error stop and display

4. Automatically feed paper and greybeard

5. 24-hours control for glue pre-heating

6. Wrapper can input 300 product formula

7. Automatically cut and heat tape to paste the greyboard box's quad stayer (four corners), with independent  man-machine control

8. Adopt servo and PLC control

9. Spotter by camera tracing system and SCARA (Selective Compliance Assembly Robot Arm) (spotting inaccuracy±0.05mm)

10. Wrapper can automatically and continually lift box,wrap paper, fold corner edge, fold in and form box

11.Automatic control system for glue viscosity(optional)

12. Remodel the taping m/c into Board assembling m/c (optional).

13.Suit to long paper ear box production.

14.Unique innovate glue application suit to both hot glue and cold glue.

15.Suit to groove paper production.

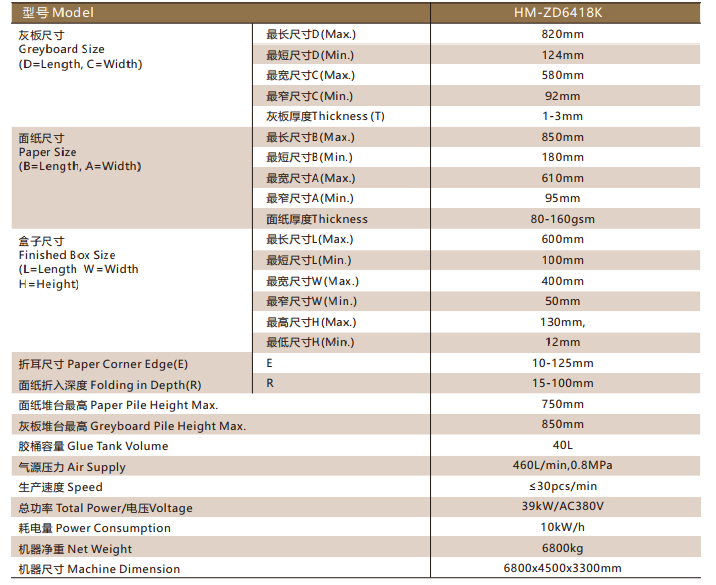

The main technical parameters of hm-zd 6418G/K automatic intelligent box machine:





Note:

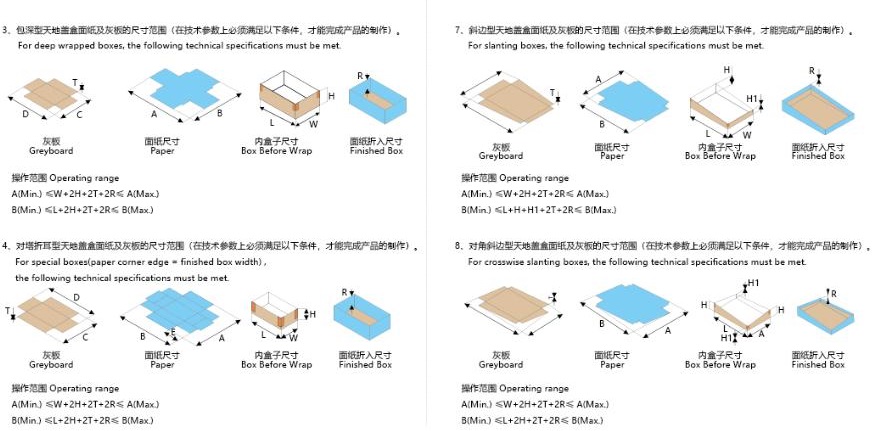

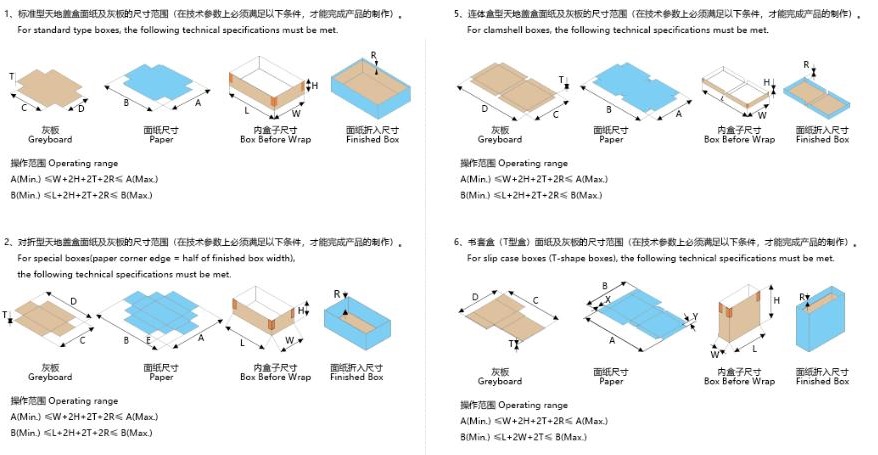

1. The finished Box Max. sizes are determined by paper size.

A(Min.)<W+2H+2T+2R<A(Max.); B(Min,)<L+2H+2T+2R<B(Max)

2. ?Either the Max. Sizes or the Min. Sizes can not be fulfilled on the same box.

3. ?The production speed of the rigid box machine is determined by the box size, paper and greyboard materials.

4. ? Seller doesn't provide air compressor. ( 8atm=0.808MPa, 7.5kW compressor is needed)

5. Item 5, item 6, item 7 and item 8 are optional device for HM-ZD6418G.



TAG:   Automatic rigid box machine rigid box line
Hits:  UpdateTime:2021-06-02 14:12:12  【Printing】  【Close
