Guangdong Hongming Intelligent Joint Stock Co.,Ltd

位置:首頁(yè) > Products

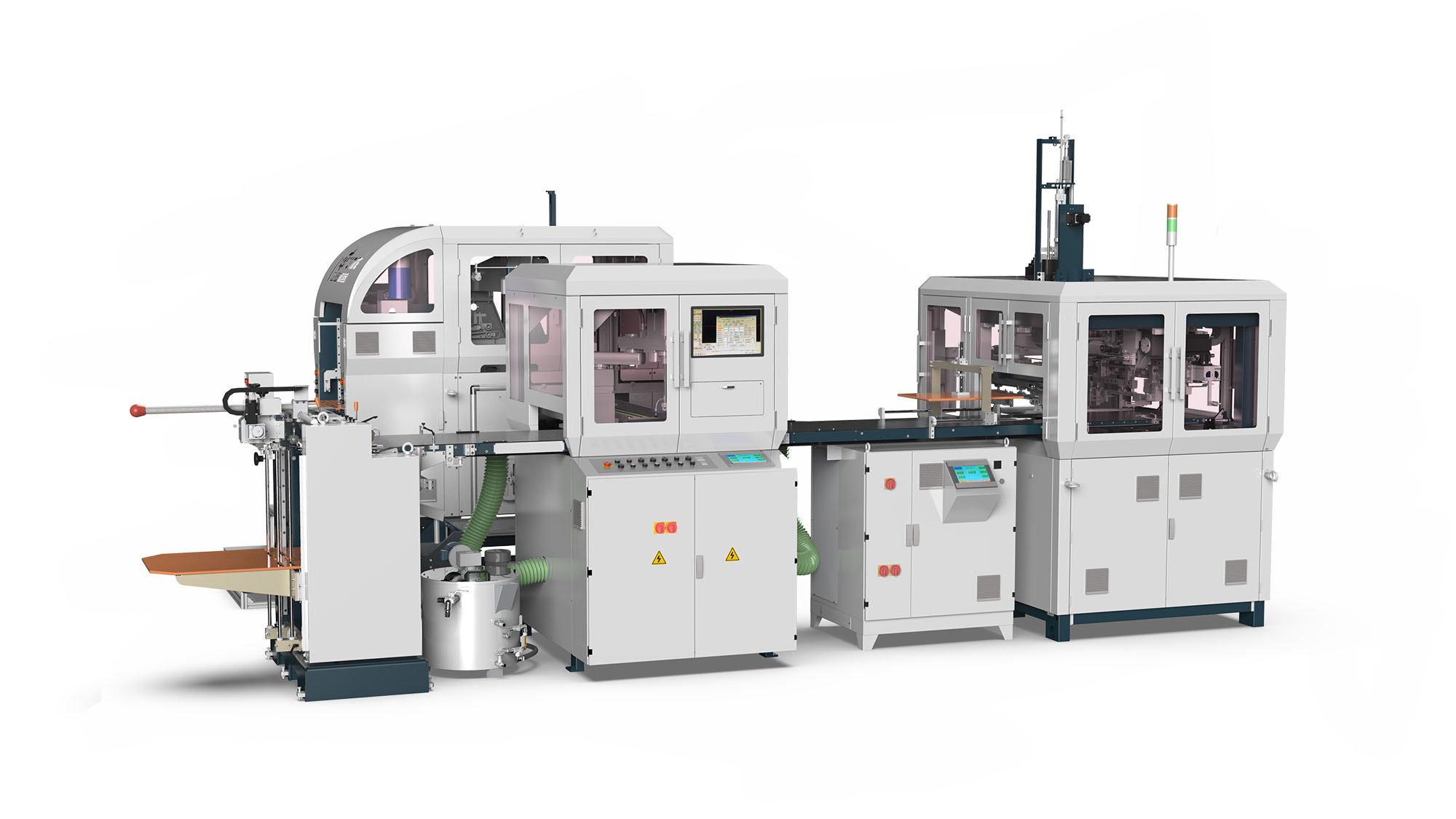

HM-ZD6418G/C-G Automatic Rigid Box Machine
HM-ZD6418G/C-G Automatic Rigid Box Machine HM-ZD6418G/C-G Automatic Rigid Box Machine HM-ZD6418G/C-G Automatic Rigid Box Machine HM-ZD6418G/C-G Automatic Rigid Box Machine
  • Commodity name:

    HM-ZD6418G/C-G Automatic Rigid Box Machine
  • Shelf time:

    2021-06-07 08:13:32
  • Browse times:

    1338次
  • Hongming focuses on R&D and produces a wide range of automatic and semi-automatic rigid machines as well asother ancillary equipment required for post-press packaging. It is widely used in the production of all kinds of premiumboxes, such as mobile phone boxes, jewelry boxes, cosmetic boxes, shoe boxes, clothing boxes, food boxes, wine boxesand other premium boxes.
  • Details of the product

HM-ZD6418G/C-G Automatic Rigid box machine product introduction:

HM-ZD6418G/HM-ZD6418C-G Automatic Rigid Box Machine is suitable to make various big sizepremium boxes’mass production, such as mobile phone boxes, gift boxes, cosmetic boxes, watch boxes,slanting (option),slip case boxes (option), clamshell box(option)etc. Size range is bigger, more suitablefor current packaging market. Machine' appearance is new design which is safer and more beautiful.

HM-ZD6418G/HM-ZD6418C-G adopts PLC and man-machine control, camera tracing system, andcan automatically feed cover paper, feed greyboard, paste four corners, spot greyboard, lift box, , foldcorner edges and wrap box.

The feeder, the gluer and the conveyor are driven by well known servos which have continuouslyvariable transmission, and enjoys high accuracy, easy adjusting, and efficiency. The spotting unit adoptscamera tracing system and robot arm to pick and spot the greyboard ,enhancing the spotter accuracy to± 0.05mm, and its spotting and adjusting is more faster. The forming unit employs Japan THK linearslider and virtual electronic cam driving system, guaranteeing the stable quality and fluent movementand enlarge the folding-in depth and corner edges.


HM-ZD6418G/C-G  features and equipment:



1. Suit to all kinds of rigid boxes in mass production.

2. Parameter adopts computer digital setting.

3. Auto error stop and display.

4. Automatically feed paper and greyboard.

5. 24-hour control for glue pre-heating.

6. Wrapper can input 300 product formulas.

7. Corner pasting part with independent man-machinecontrol and heating system

8. Adopts YASKAWA servo control system.

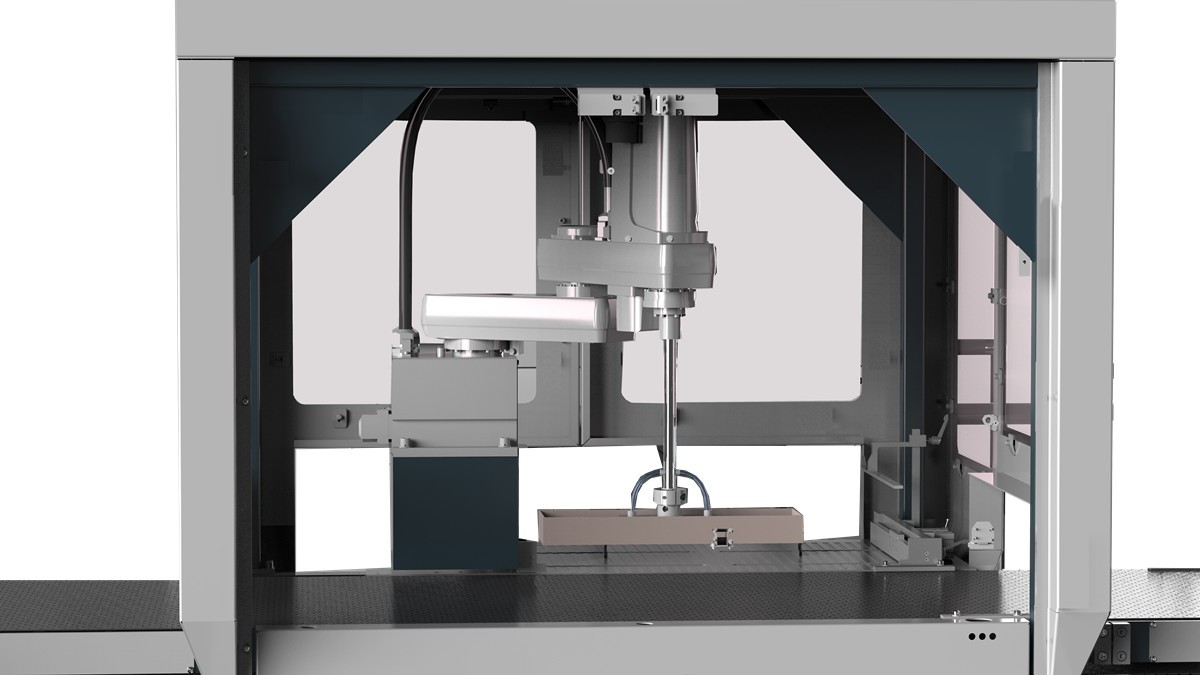

9. Spotter by camera tracing system and SCARA (SelectiveCompliance Assembly Robot Arm) (spottingaccuracy±0.05mm).

10. Wrapper can automatic lift amd wrap box.

11. Automatic control system for glue viscosity(optional).

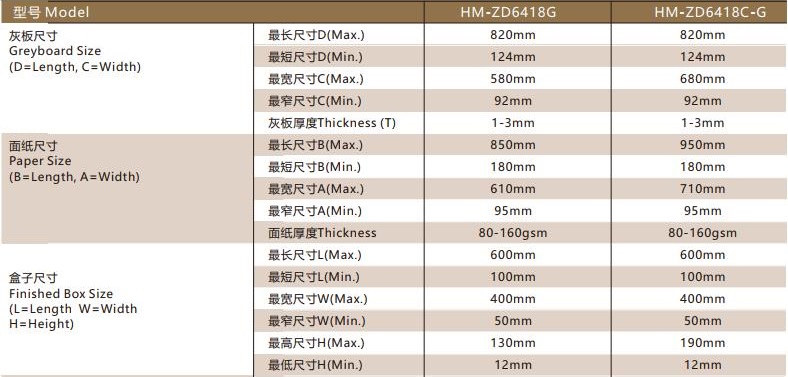

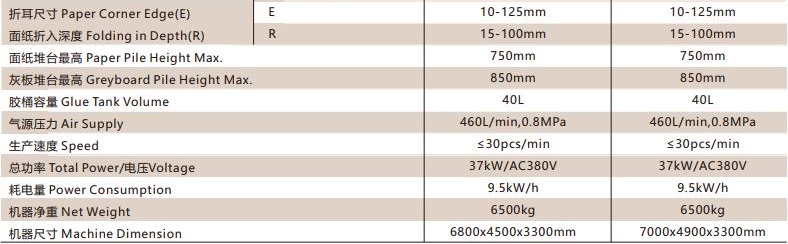

Technical Parameters






TAG:  Automatic rigid box machine paper box machine Automatic rigid box machine cardboard box machine
Hits:  UpdateTime:2021-06-07 08:13:32  【Printing】  【Close
