Guangdong Hongming Intelligent Joint Stock Co.,Ltd

位置:首頁 > Products
HM-ZD350K-S Automatic rigid box machine
HM-ZD350K-S Automatic rigid box machine HM-ZD350K-S Automatic rigid box machine HM-ZD350K-S Automatic rigid box machine HM-ZD350K-S Automatic rigid box machine HM-ZD350K-S Automatic rigid box machine
  • Commodity name:

    HM-ZD350K-S Automatic rigid box machine
  • Shelf time:

    2021-06-07 08:28:02
  • Browse times:

    881次
  • Hongming sales network covers many regions of the world. It has a comprehensive sales network throughout China and overseas, providing advanced equipment, technology, services and comprehensive packaging solutions to nearly 10000 users in more than 30 countries and regions around the world. It is the preferred supplier of well-known premium box manufacturers. Hongming focuses on R&D and produces a wide range of automatic and semi-automatic rigid machines as well as other ancillary equipment required for post-press packaging. It is widely used in the production of all kinds of premium boxes, such as mobile phone boxes, jewelry boxes, cosmetic boxes, shoe boxes, clothing boxes, food boxes, wine boxes and other premium boxes
  • Details of the product

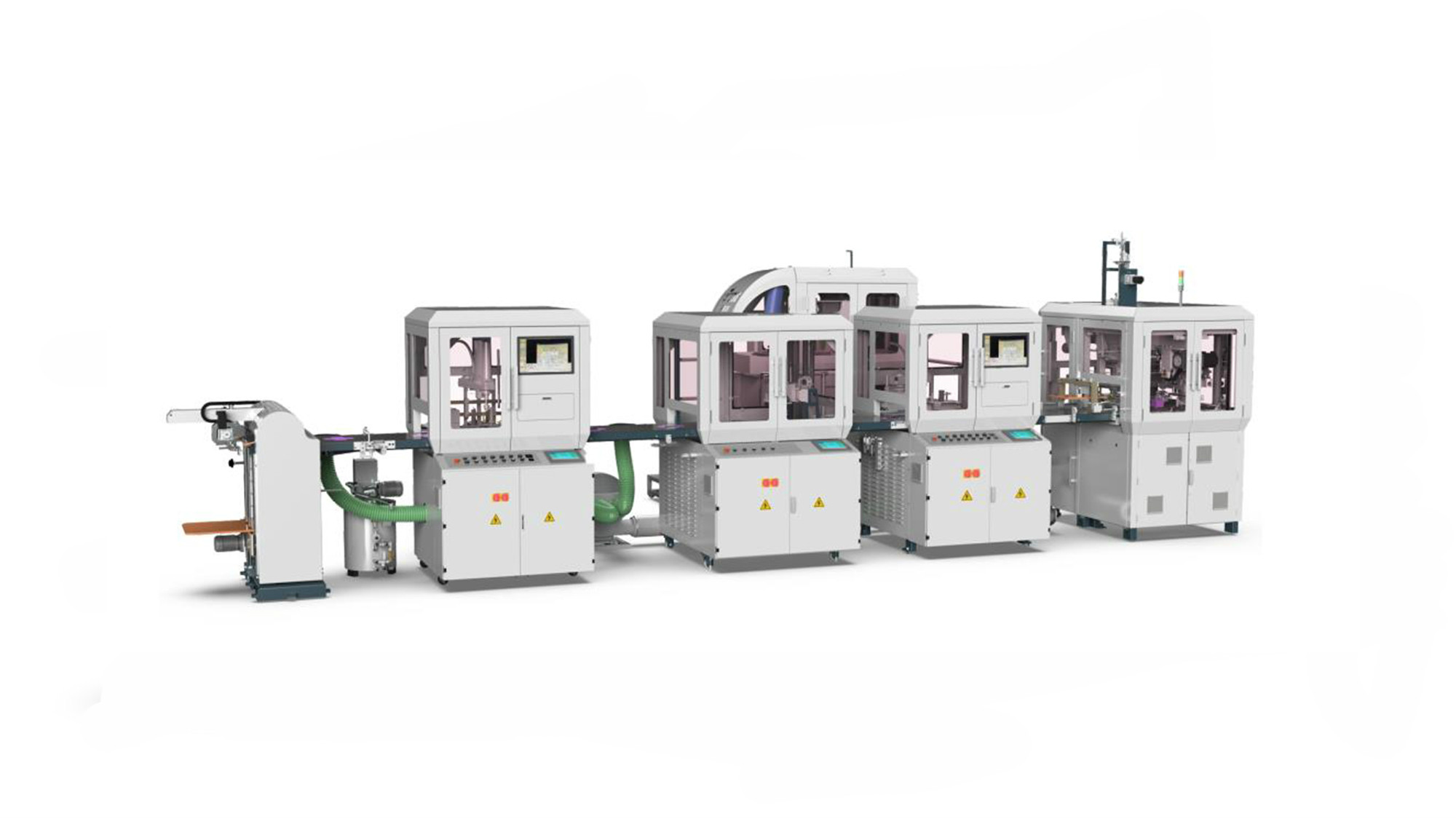

HM-ZD350K-S Automatic rigid box machine Description:

HM-ZD350K-S Automatic Rigid Box Machine is a multi-functional automatic intelligent equipment for the regular size premium box, which is designed to highlight both the roller glue and the screen glue. It is suitable to make various types of rigid boxes for mass production, such as jewelry boxes, mobile phone boxes, gift boxes, cosmetic boxes, watch boxes, etc. Glue model can be shifted between roller glue and screen glue according to the product. Size range is bigger, more suitable for current packaging market. Machine's appearance is new design which is safer and more beautiful.

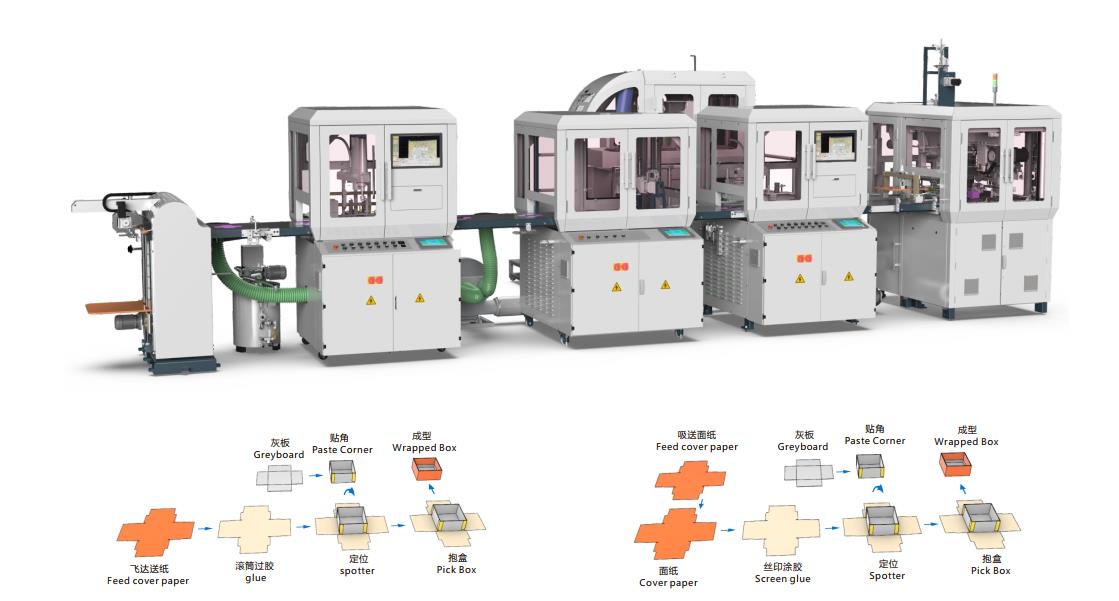

HM-ZD350K-S adopts PLC and man-machine control, camera tracing system, and can automatically feed cover paper, feed greyboard, glue the paper, spot the bottom plate, spraying glue on the bottom plate, spot the box shell, lift box, fold corner edges and wrap box.

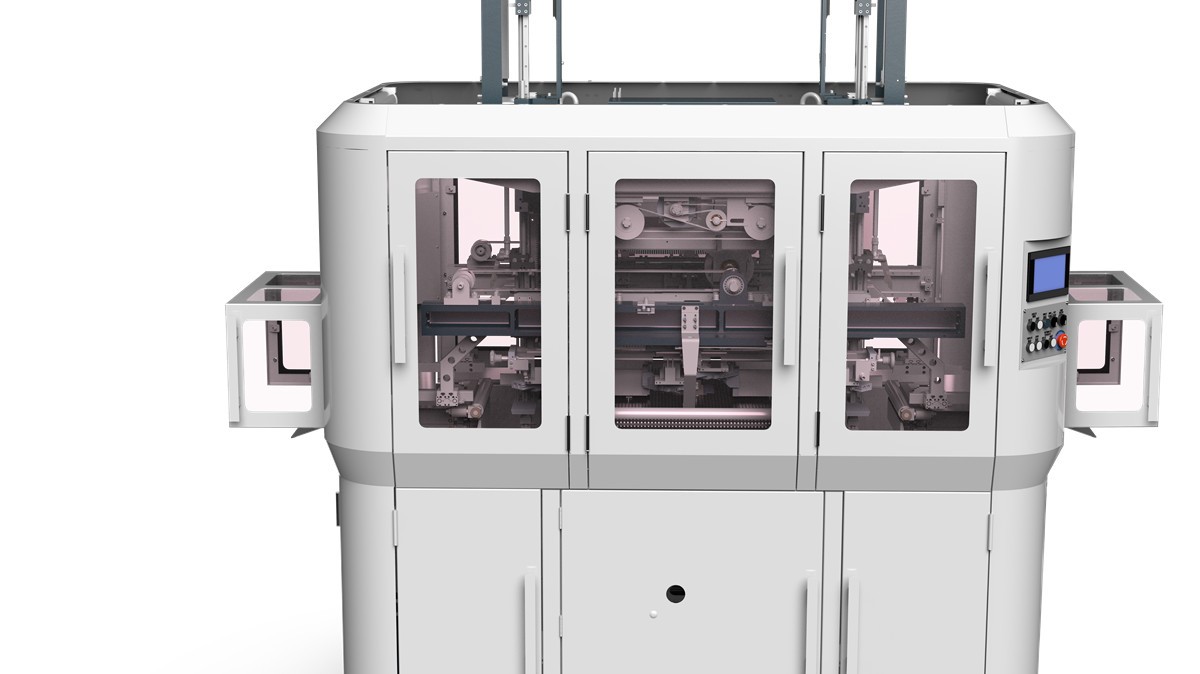

The feeder, the gluer and the conveyor are driven by servos which have continuously variable transmission and enjoy high accuracy, easy adjusting, and efficiency. Double colors conveyor can save the time for changing to other color belt, which is Hongming' s patent. The spotting unit adopts camera tracing system and robot arm to pick and spot the greyboard ,enhancing the spotter accuracy to ±0.05mm, The forming unit employs Japanese THK linea slider and virtual electronic cam driving system, guaranteeing the stable quality and fluent movement and enlarge the folding-in depth and corner edges.








Features and function:

1. Suit to all kinds of rigid boxes in mass production
2. Auto error stop and display

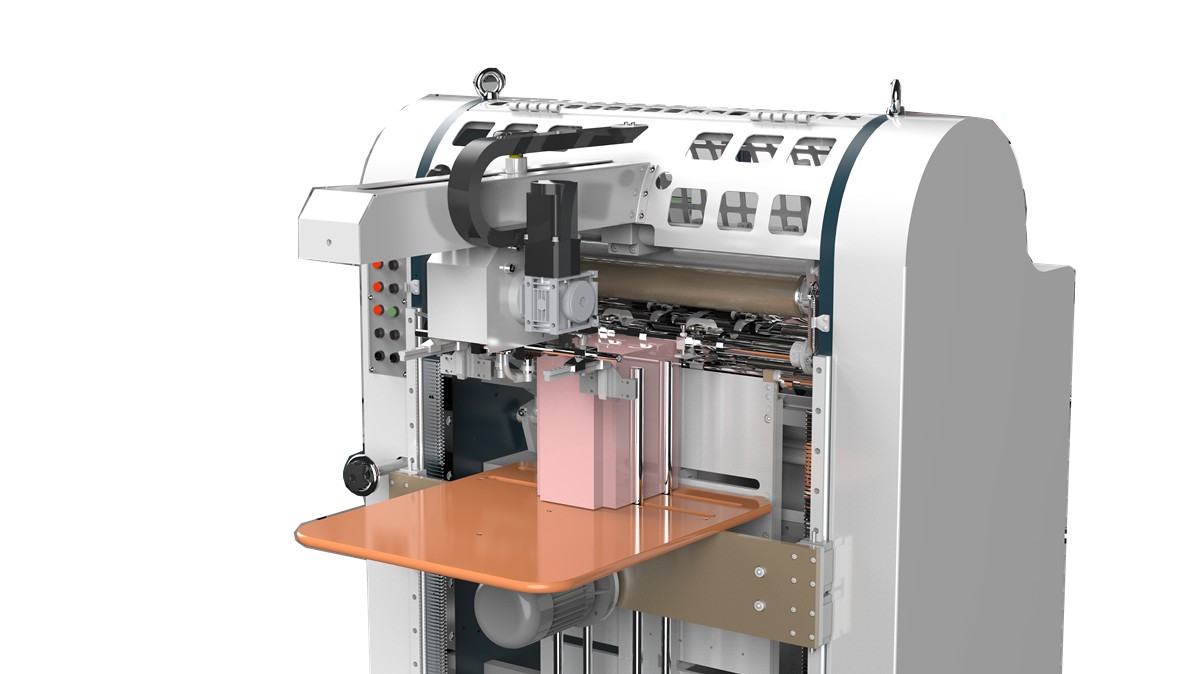

3. Automatically feed paper and greyboard
4. Glue mode switching function
5. 24-hour control for glue pre-heating
6. Adopt YASKAWA servo control system

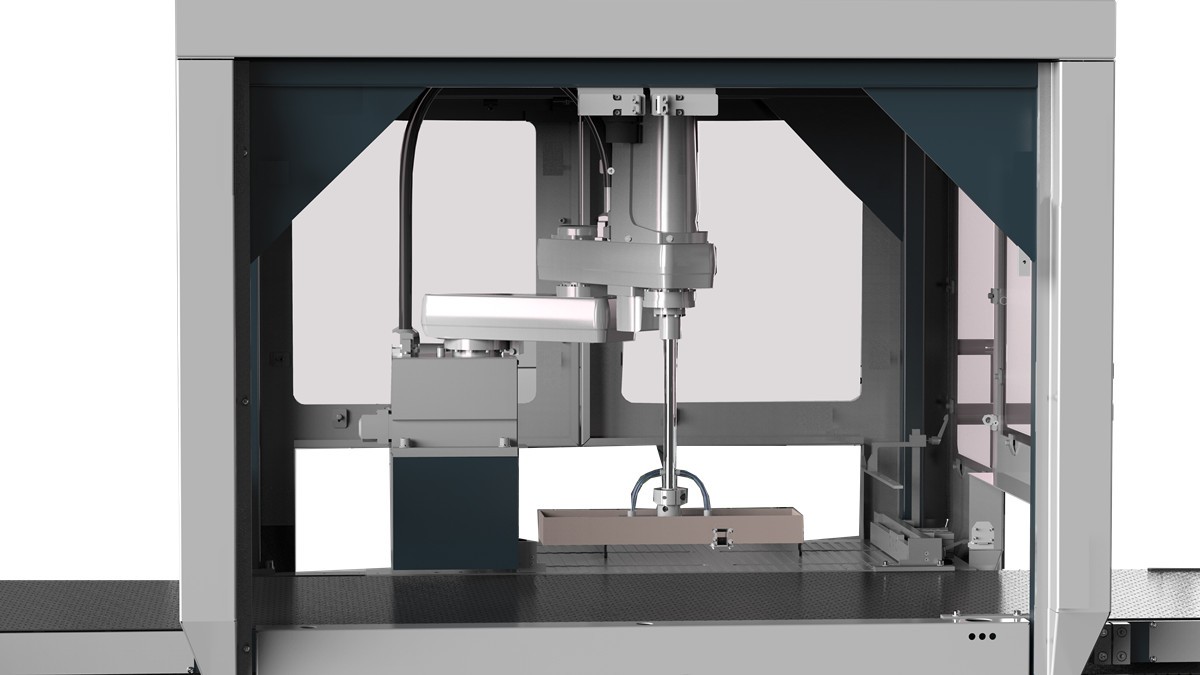

7. Spotter by camera tracing system and SCARA (Selective
Compliance Assembly Robot Arm)(Spotting accuracy ±0.05mm)

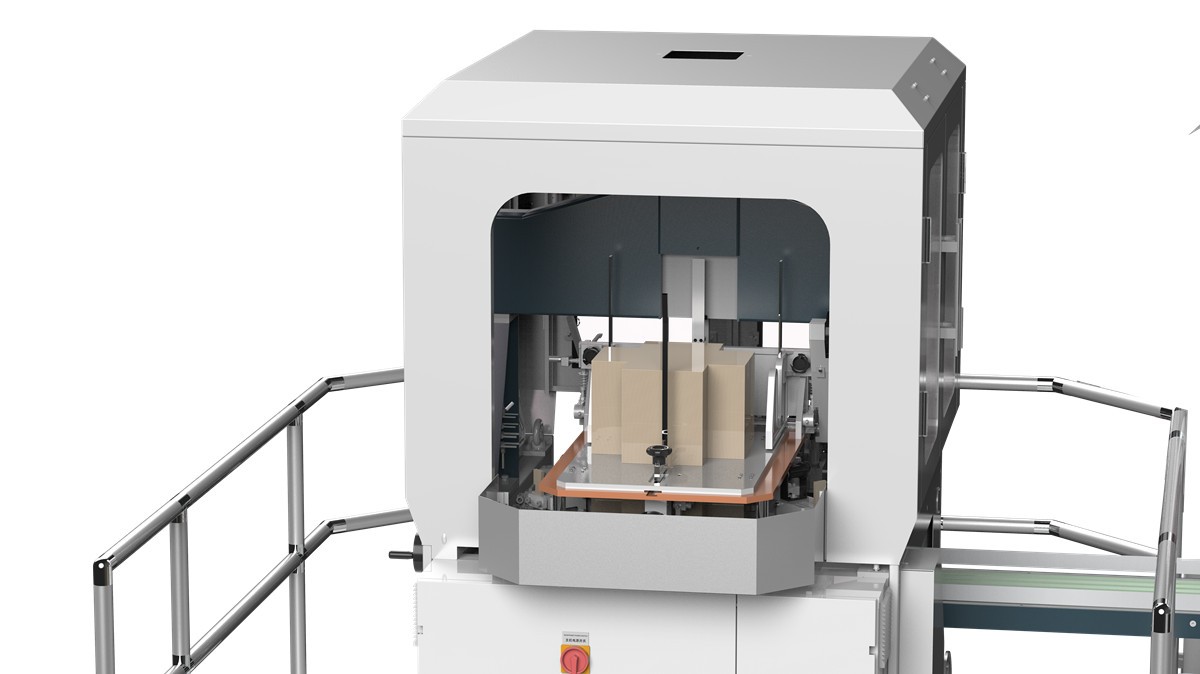

8. Wrapper can automatic lift and wrap box.
9. Automatic control system for glue viscosity(optional).



Note:

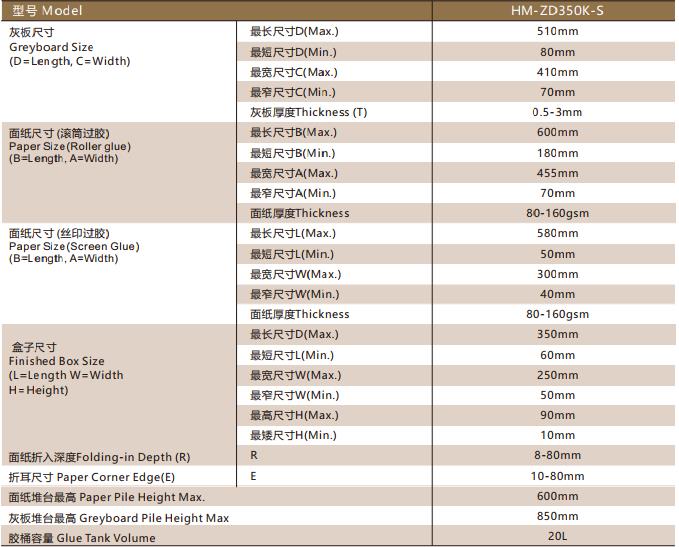

1、The Finished Box Max. sizes are determined by paper size.A(Min.)W+2H+2T+2RA(Max.); B(Min.)L+2H+2T+2RB(Max.)

2The production speed of the rigid box machine is determined by the box size,

the paper and the greyboard materials.

3、Seller doesn't provide air compressor. (8atm=0.808MPa, 7.5kW compressor is needed)




TAG:   Automatic rigid box machine cardboard box machine cosmetic box machine
