Guangdong Hongming Intelligent Joint Stock Co.,Ltd

位置:首頁 > Products > Rigid box machines

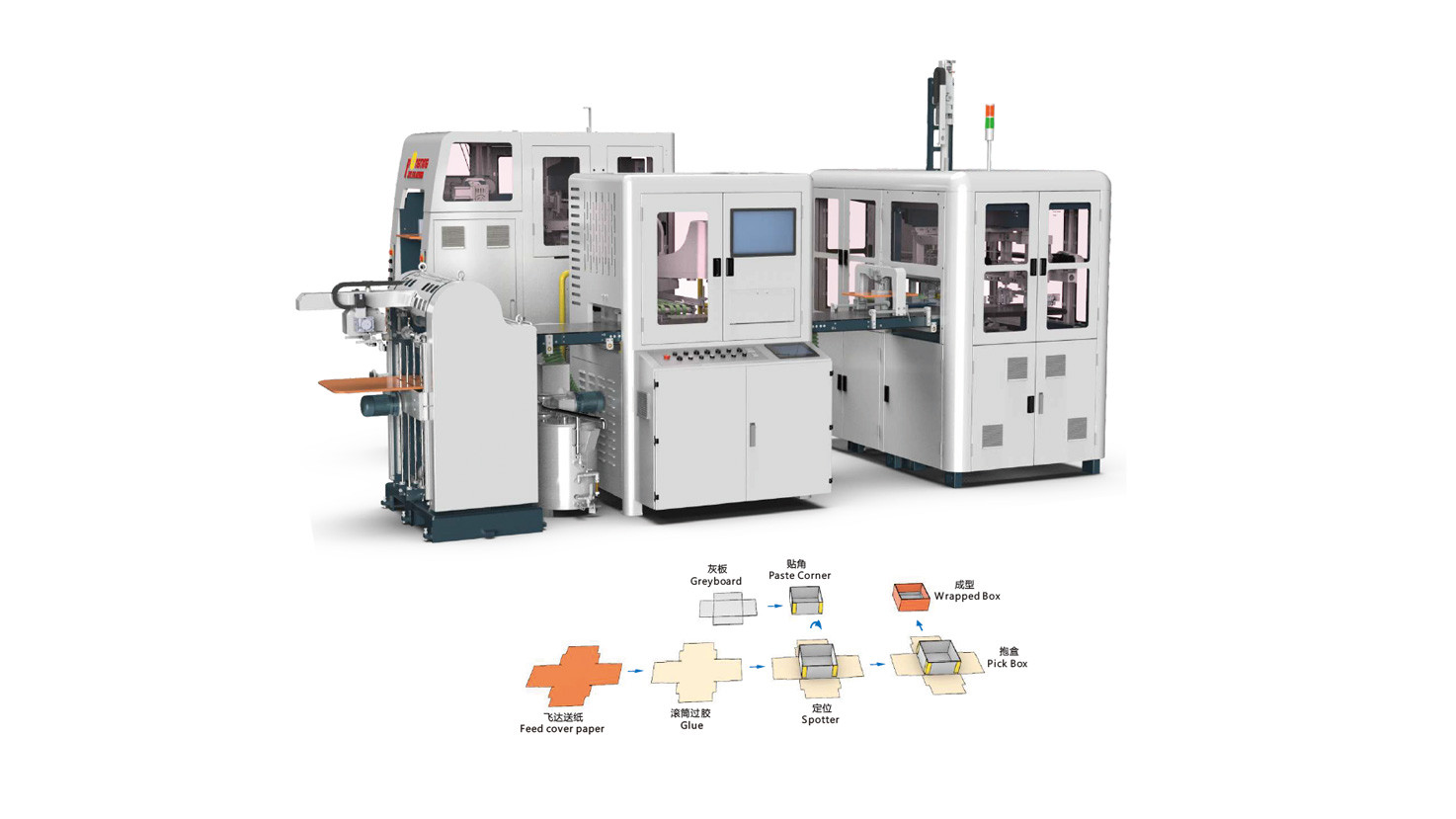

HM-DP4030A Automatic Rigid Box Machine
HM-DP4030A Automatic Rigid Box Machine HM-DP4030A Automatic Rigid Box Machine HM-DP4030A Automatic Rigid Box Machine
  • Commodity name:

    HM-DP4030A Automatic Rigid Box Machine
  • Shelf time:

    2024-08-24 14:07:52
  • Browse times:

    119次
  • HM-DP4030A Automatic Rigid Box Machine product introductionHM-DP4030A Automatic rigid box machine is for making premium boxes of regular size, which is digitalsetting with memory system. It is suitabl
  • Details of the product

HM-DP4030A Automatic Rigid Box Machine product introduction

HM-DP4030A Automatic rigid box machine is for making premium boxes of regular size, which is digital
setting with memory system. It is suitable for mass production of various box types, such as high-end jewelry
boxes, mobile phone boxes, jewelry boxes, gift boxes , cosmetics boxes, watch boxes etc, the biggest box can reach
400 mm in length and 300 mm in width. The range of boxes is larger and can meet the needs of the modern
packaging market. The appearance of the whole machine has been completely redesigned to be safer and more
beautiful.

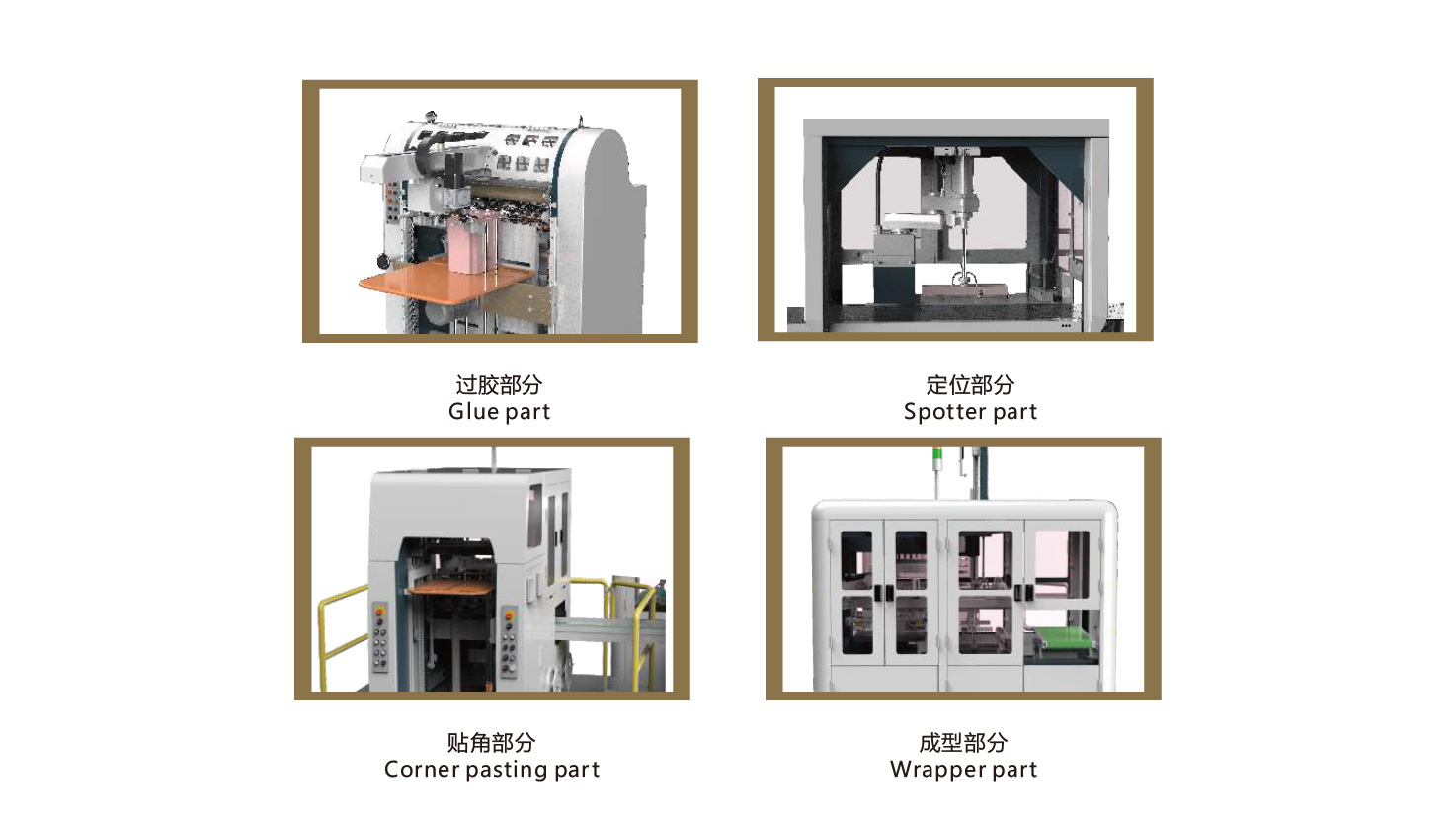

This machine adopts PLC and man-machine control system and camera tracing system to feed paper, gluing,
feed greyboard , pasted four corners, spot greyboard, lift box, fold corner edges and wrap box automatically.
The feeder, the gluer and the conveyor are driven by servos, the machine has continuously variable
transmission and enjoys high accuracy, easy adjusting, and efficiency. The spotting unit adopts camera tracing
system and robot arm to pick and spot the greyboard, enhancing the spotter accuracy to ±0.05mm. The forming
unit adopts Japan THK linear slider and virtual electronic cam driving system, guaranteeing the stable quality and
fluent movement and enlarge the folding-in depth and corner edges.

HM-DP4030A Automatic Rigid Box Machine unit features and standard equipment

1. Suit to all kinds of rigid boxes in mass production;
2. Single Wrapper;
3. Parametric intelligent adjustment;
4. The long side and short side are layered and formed;
5. The cam box can participate in motion control as a whole; (Details please check the note)
6. Parameters adopts computer digital setting;
7. The box-out direction is parallel to the main conveyor belt;
8. Auto error stop and display;
9. Automatic feed paper and greyboard;
10. 24-hour glue timing heating function;
11. Wrapper can input 300 product formulas;
12. Corner pasting part with independent man-machine control and heating system; (Details
please check the note)
13. Multifunctional Robot Vision Image Positioning System (spotting accuracy ±0.05mm);
(Details please check the note)
14. Wrapper can automatic lift and wrap box; (Details please check the note)
15. Automatic control system for glue viscosity (optional);(Details please check the note)
16. Bottom mould use Piston type;(Details please check the note)
17. Main Slider and pull mold section synchronized; (Details please check the note)

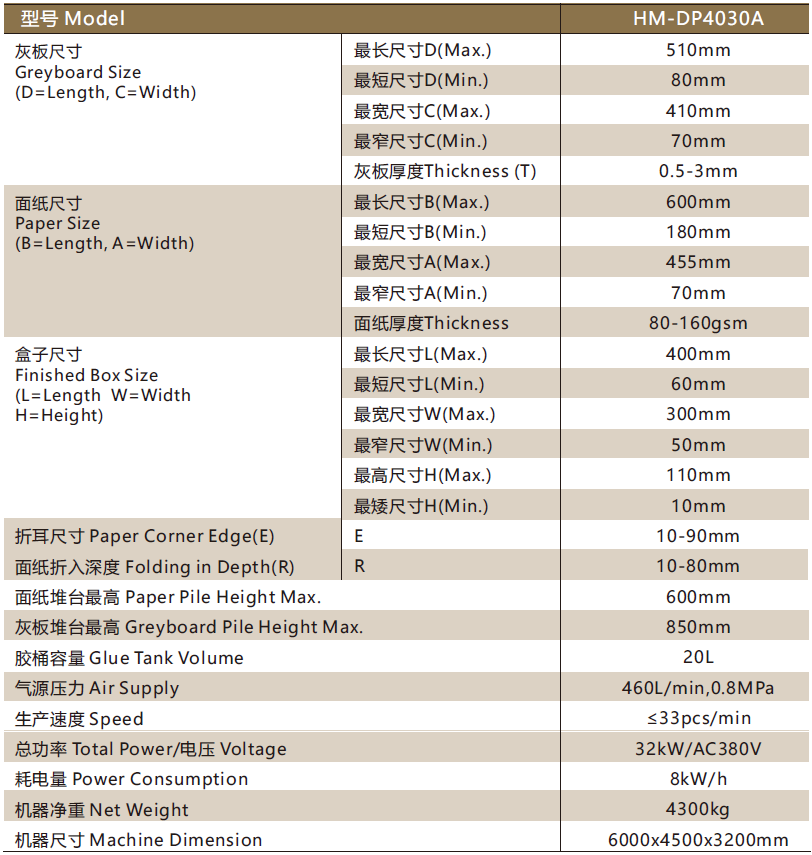

The main technical parameters of HM-DP4030A Automatic Rigid Box Machine


Rigid box making machine, Rigid box maker, Rigid box line

Rigid box making machine, Rigid box maker, Rigid box line


Hits:  UpdateTime:2024-08-24 14:07:52  【Printing】  【Close
