Guangdong Hongming Intelligent Joint Stock Co.,Ltd

位置:首頁 > Products > Rigid box machines
HM-ZD6418D High Speed Automatic
HM-ZD6418D High Speed Automatic HM-ZD6418D High Speed Automatic HM-ZD6418D High Speed Automatic
  • Commodity name:

    HM-ZD6418D High Speed Automatic
  • Shelf time:

    2021-06-02 10:58:33
  • Browse times:

    1749次
  • Automatic rigid box machine, rigid box line, Set up box machine, cardboard box machine, mobile phone box machine,paper box machine, cosmetic box machine
  • Details of the product

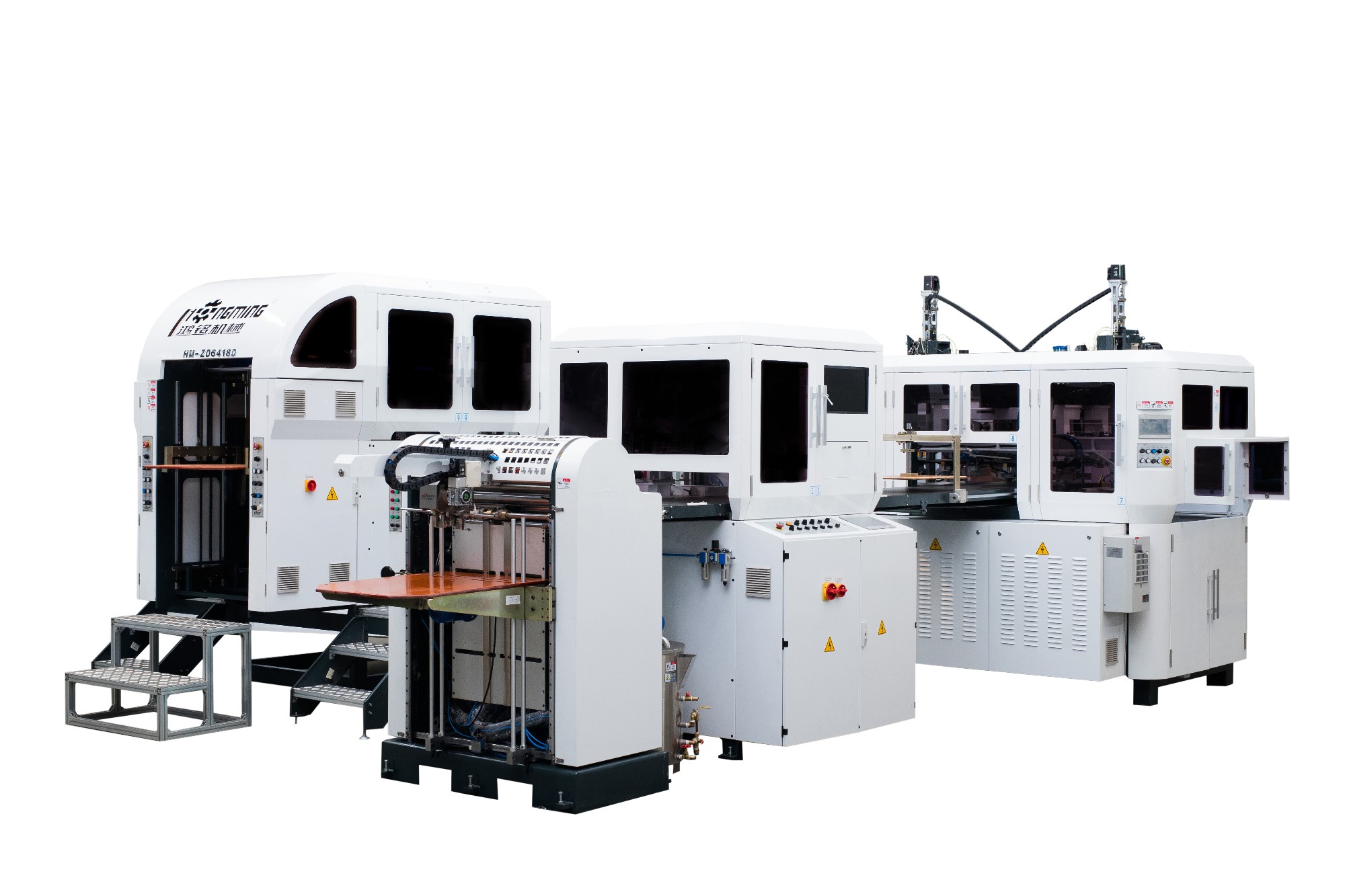

HM-ZD6418D High Speed Automatic Rigid Box Machine

Functional description:

     HM-ZD6418D High Speed Automatic Rigid Box Machine is one of the most advanced fully autobox machines by our company .It is suitable to make various types of rigid boxes for mass production,such as mobile phone ,gift boxes,cosmetic boxes,watch boxes,slanting boxes,slip case (option),etc.size range is bigger than ZD350A,more suitable for current packaging market.Machine's appearance is new design which is safer and more  beautiful.



   HM-ZD6418D adopts PLC and man-machine control,camera tracing system,and can automatically feed cover paper,feed greyboard,tape four corners,spot greyboard,lift box,wrap box,fold corner edges,and form box.



    The feeder,the gluer and the conveyor are driven by well known servos which have continuously variable transmission,and enjors  high accuiacy,easy adjusting,and less time consumption.the spot unit adopts germany camera with 10 ,illion pixel and spotting accuiacy to ±0.05mm.The forming unit employs Germany REXROTH linear and virtual cam driving system,guaranteeing the stable quality and fluent movement and enlarge the folding-in depth and cirner edges.



Features and function:


1. Suitable for all kinds of automatic production lines of cardboard world cover


2. Set the function parameters of the whole computer


3. Fault diagnosis function


4. Automatic feeding function of tissue paper and ash feeding board


5.24 hours control glue preheating function


6. 300 product formulations are built into the molding machine


7. Separate human-machine interface control for four-corner heating


8. The whole machine adopts yaskawa servo control system


9. Image positioning system and robot grasping and positioning (error ±0.05mm)


10. Automatic carton lifting and drawing device


11. Automatic glue viscosity control system (optional)


12. It can be modified to use the ash palletizing machine (optional)


13. Short side ears can be matched or butt left and right, more suitable for high-grade carton production


14. The innovative new gluing method can be used for both white glue and hot melt glue


15. Can produce face paper slotting products, and complete the edge folding ear at one time.



Features and function:

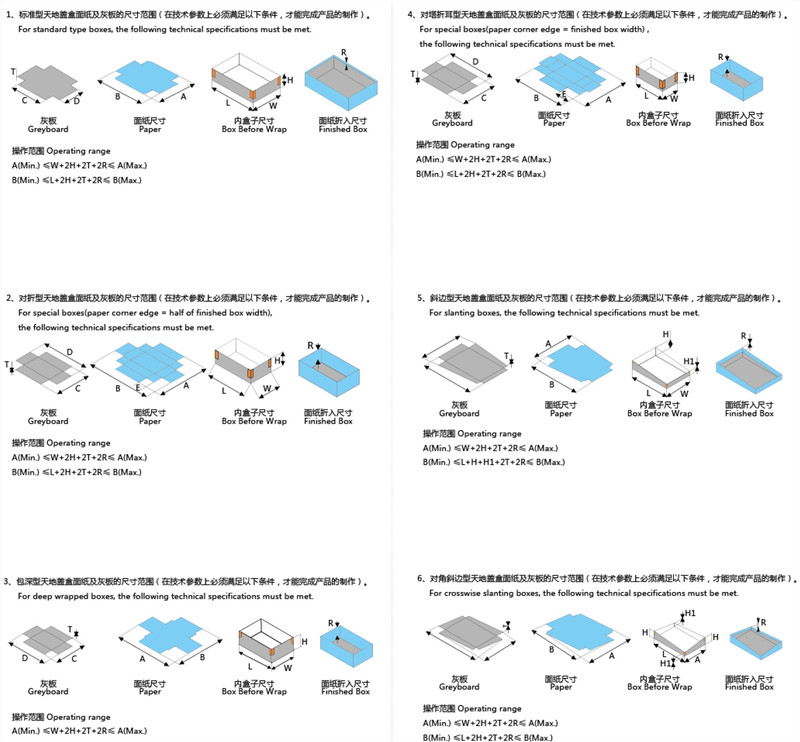

Note:

1. The size of the box is determined by the size of the tissue;

A (Min.) < W + 2 h + 2 t + 2 r < A (Max.);B (Min.) < L t + 2 + 2 + 2 h r < B (Max.)

2. The maximum and minimum sizes cannot be satisfied at the same time;

3. The production speed is determined by the size of the box and the material of the paper and gray board;

4. Our company does not provide air compressor.





TAG:   Automatic rigid box machine Carton forming machine Boxmakingmachine
Hits:  UpdateTime:2021-06-02 10:58:33  【Printing】  【Close
