HM-ZD6435A Automatic Rigid Box Machine
HM-ZD6435A Automatic Rigid Box Machine HM-ZD6435A Automatic Rigid Box Machine HM-ZD6435A Automatic Rigid Box Machine HM-ZD6435A Automatic Rigid Box Machine
  • Commodity name:

    HM-ZD6435A Automatic Rigid Box Machine
  • Shelf time:

    2021-06-02 11:03:39
  • Browse times:

    938次
  • Automatic rigid box machine, rigid box line, Set up box machine, cardboard box machine, mobile phone box machine,paper box machine, cosmetic box machine
  • Details of the product


HM-ZD6435A Automatic Rigid Box Machine  Description

HM-ZD6435A Automatic Rigid Box Machine,designed for embossed paper or different thickness paper,which can apply for partial screen glue. It is suitable for various types of premium boxes production especially like mobile phone boxes,watch boxes,tea boxes ,gift boxes,and cosmetic boxes etc,  And its size range is bigger and more suitable for current packaging market. Machine's appearance is new design which is safer  and more beautiful.

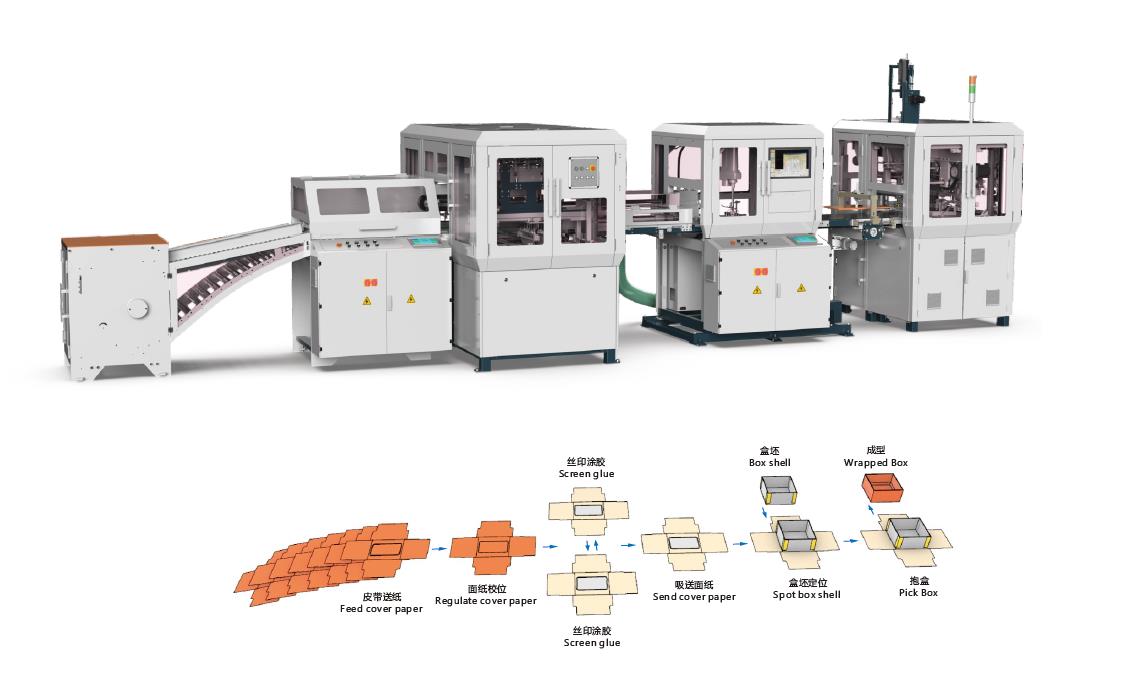

HM-ZD6435A adopt PLC and man-machine control ,camera tracing system, and can automatically feed cover paper ,screen glue,spot greyboard ,lift box, fold corner edges and form box.

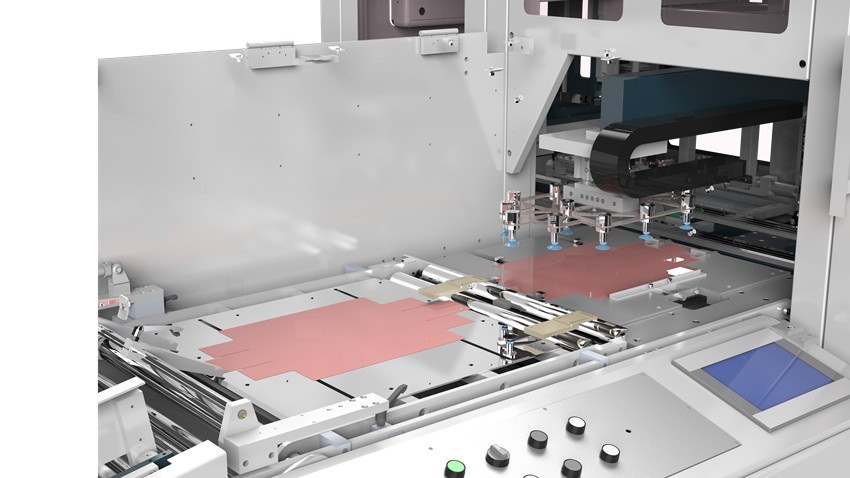

Using the cyclic overturning feeding structure independently developed by Hongming ,the automatic feeding of lining can be realized,the double-position of screen printing glue part can realize the partial glue of the paper,and the glue is thin and even .Double color conveyor can aviod changing to other color belt which is Hongming 's patent .the spotter unit adopts camera tracing system and robot arm to pick and spot the greyboard ,employs THK linear slider and virtual exectronic cam driving system guaranteeing the stable quality and fluent movement and enlarge the folding -in depth and corner edges.


HM-ZD6435A


HM-ZD6435A Features and function :

1.Suit to all kinds of rigid boxes in mass production

2.Auto error stop and display

3.Automatic feed paper

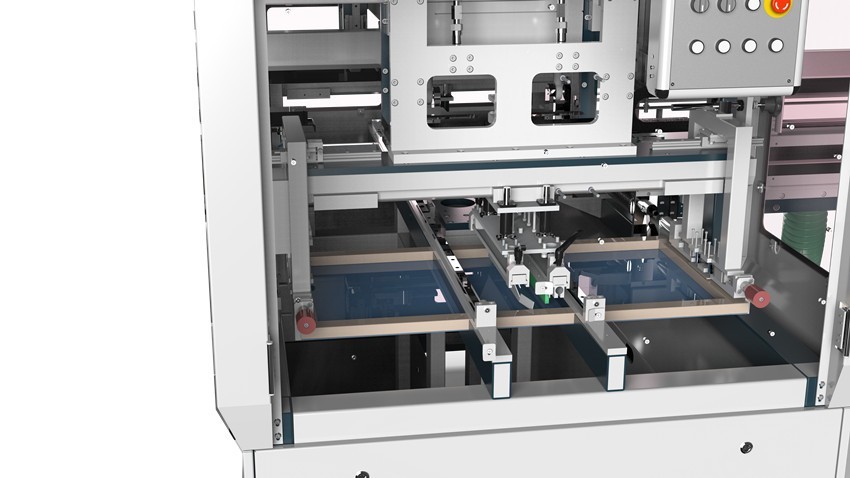

4.Screen glue function

5.Adopt YAMAHA servo control system

6.Spotter by camera tracing system and SCARA(Selective Compliance Assembly Robot Arm)(spotting accyuacy ±0.05mm)

7.Wrapper can automatic lift and wrap box

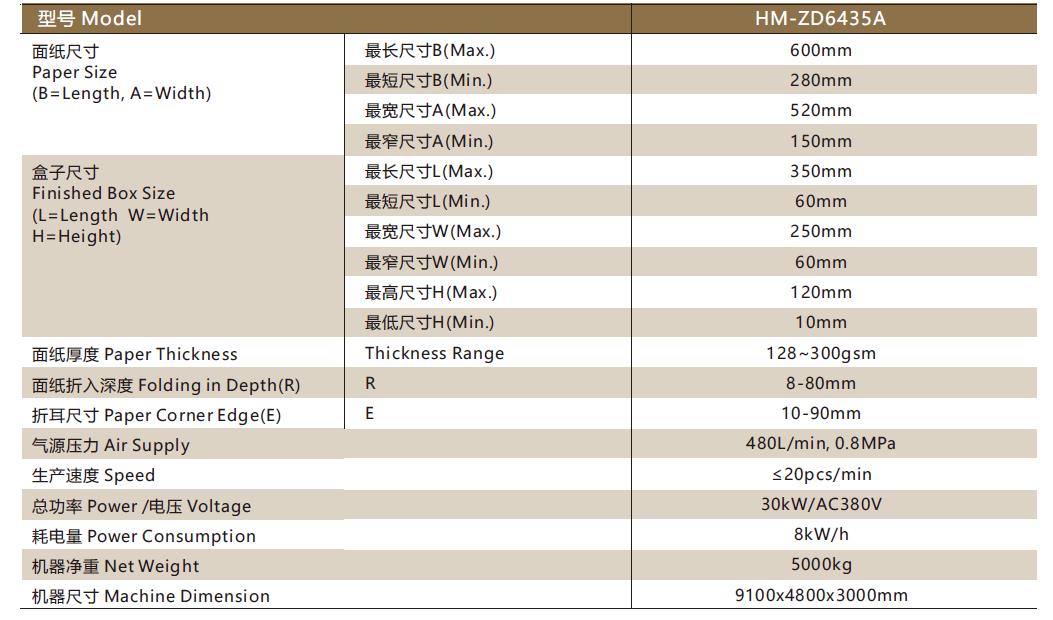

Technical parameters:

technical parameters.jpg




TAG:   Automatic rigid box machine rigid box  box machine
